Engineering Overview

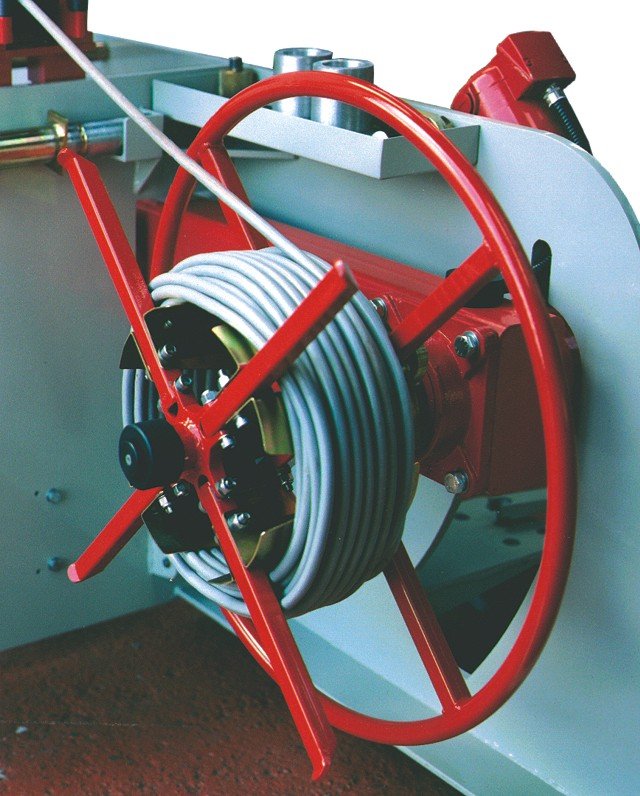

The Autoreel SCW Series features a single-sided cantilever spindle design that removes the outer support frame, allowing drums, bobbins, and collapsible coiling heads to be loaded and unloaded directly from the side without obstruction.
This open architecture makes the SCW ideal for production lines and distributor desks requiring frequent product swaps between spools and tied coils.
Built with heavy-duty oversized cantilever spindle bearings and a compact mobile chassis for maximum workshop versatility.
Machinery in Action • Factory Demonstration

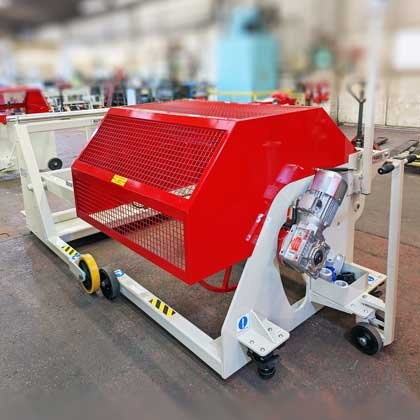

Autoreel SCW 500: Single Arm Cantilever Winder Demonstration

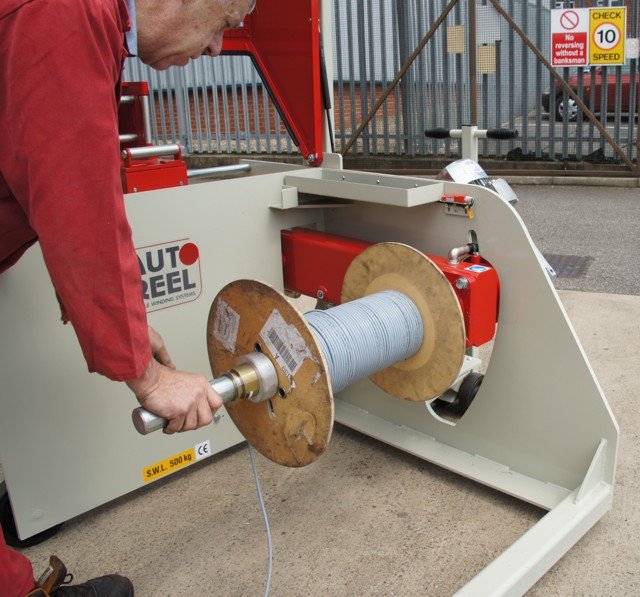

Rapid side loading and unloading of reels and tied hanks on the cantilever stub spindle without an outer obstructing frame.
Factory Photo Gallery
SCW Cantilever Series Specifications
| Model | Max Drum Weight | Max Drum Diameter | Max Drum Width |
|---|---|---|---|
| SCW 250 | 250 Kg | 1100 mm | 650 mm |
| SCW 500 | 500 Kg | 1100 mm | 650 mm |
Standard Equipment & Safety
- Single-sided cantilever stub shaft for instantaneous reel loading.
- Integrated metric linear cable measuring counter with ±0.5% calibration.
- Mobile chassis with heavy duty braked swivel casters.

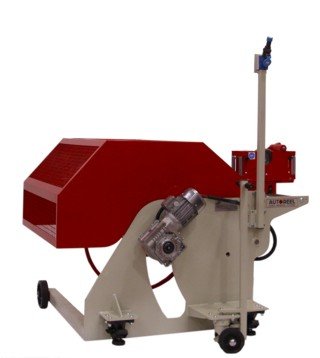

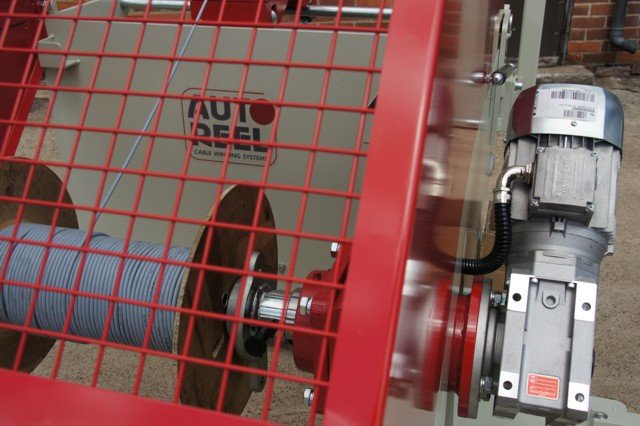

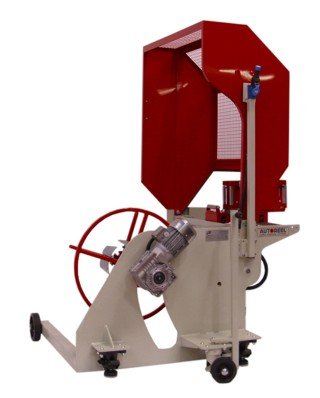

- Interlocked safety cage with automatic spindle stop on guard opening.
Optional Extras Available
- Pneumatically expanding cantilever spindle for rapid core clamping.
- Digital preset batch counter with automatic slowdown and stop.

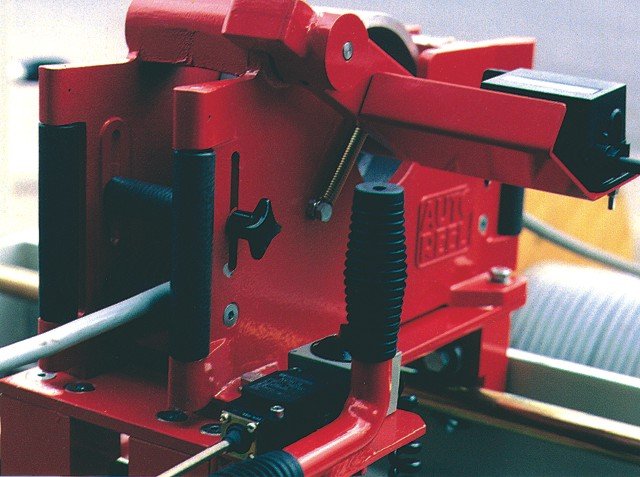

- Traversing guide carriage for clean cable layering.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
