Engineering Overview

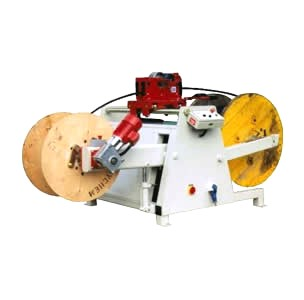

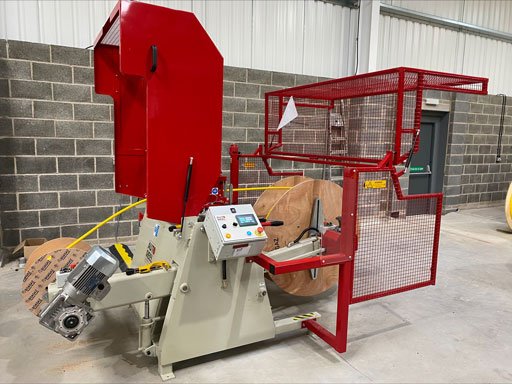

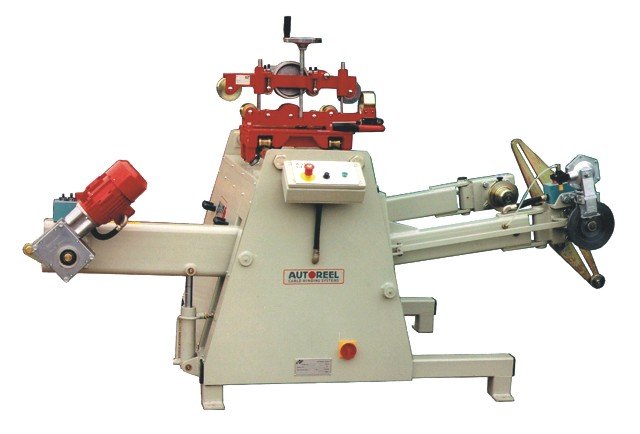

The Autoreel CWP Combined Motorised Winder and Payoff series combines a powered take-up winder, precision linear cable measuring meter, and a heavy-duty roll-in payoff station into a single unified chassis.
Specifically engineered for electrical wholesalers and cable distributors, the CWP allows stock drums to be rolled directly into the rear payoff ramp on heavy-duty bearing rollers, measured through the sliding traverse meter, and spooled onto the motorised winder.
Variable speed AC inverter drives allow precise inching, rapid cut-to-length winding, and smooth deceleration to preset target lengths.
Interactive CWP Line Simulator: Pay-Off to Powered Take-Up
Test the complete cut-to-length converting sequence in our interactive line simulator. See how the roll-in master payoff, tension accumulator dancer, ±0.5% linear measuring meter, and powered take-up operate in unison for 2-minute order turnarounds.
Factory Photo Gallery
CWP Combined Series Capacity Matrix
| Model | Take-Up SWL | Payoff SWL | Max Flange Ø | Dimensions (L x W x H) | Drive Power |
|---|---|---|---|---|---|
| CWP 500 | 500 Kg | 500 Kg | 1000 mm | 2200 x 1400 x 1350 mm | 2.2 kW AC |
| CWP 1000 | 1000 Kg | 1000 Kg | 1250 mm | 2600 x 1650 x 1450 mm | 4.0 kW AC |
| CWP 2000 | 2000 Kg | 2000 Kg | 1600 mm | 3100 x 1900 x 1600 mm | 5.5 kW AC |
| CWP 3000 | 3000 Kg | 3000 Kg | 1600 mm | 3400 x 2100 x 1650 mm | 7.5 kW AC |
Standard Equipment & Safety
- Combined take-up winder and payoff in single monocoque frame.
- Integrated metric linear cable measuring meter (0–9999.9m).
- Roll-in payoff ramp with heavy-duty bearing rollers.
- Variable speed motor with reversible rotation.
- Foot switch control with emergency stop trip bars.
Optional Extras Available
- Collapsible split coiling head for tied coils.

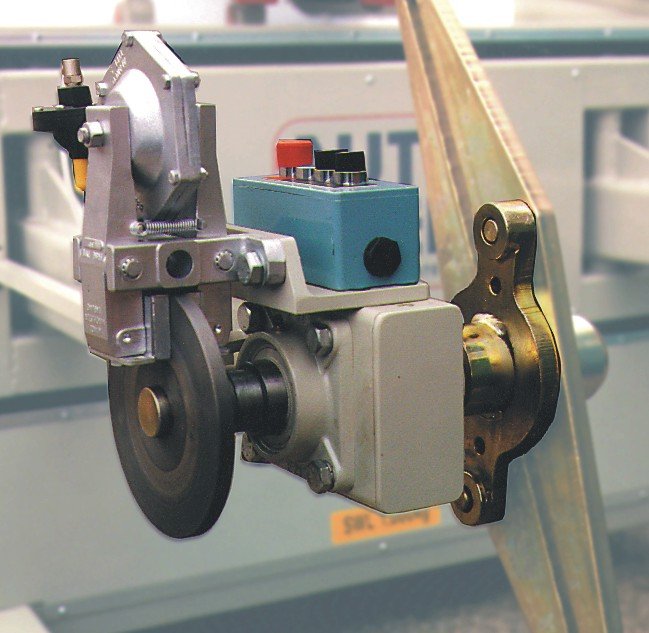

- Electromagnetic disc brake on payoff spindle.
- Traversing measuring meter carriage for uniform layering.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
