Autoreel’s comprehensive range of linear measuring meters complements our programme of cable winding systems. The range is designed to cover all reel form materials including electrical cable, telephone cable, hose, wire, extrusions, covered and uncovered wire rope, fibre rope, etc.
The meters are fitted with a standard preset counter measuring in meters and tenths from 0 to 9999.9m. However, these can be optionally replaced with other meters for measuring in yards. In addition, a range of electronic and preset meters is available to suit individual requirements.
Machinery in Action • Factory Demonstration
Calibrated Linear Cable Measuring Meter (±0.5% Certified)
Traceable metric linear length counter demonstrating minimal product giveaway and automated programmable slowdown.
Factory Photo Gallery
📄 Download Options & Accessories Brochure (PDF) →

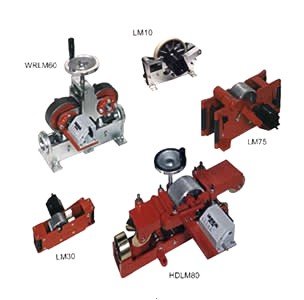

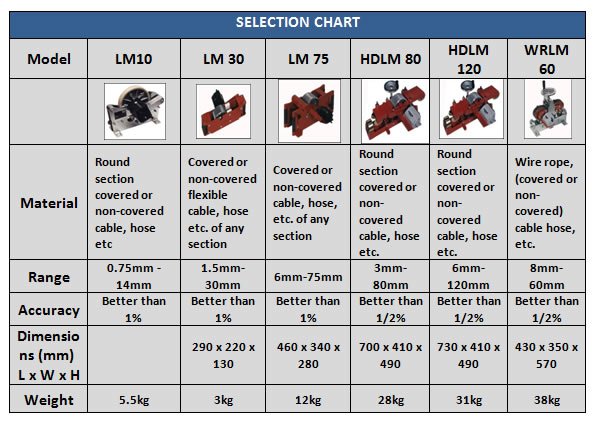

LM Series Linear Measuring Meters Technical Specification
| Model | Cable/Rope Diameter Range | Accuracy | Weight | Typical Mounting |
|---|---|---|---|---|
| LM10 | 0.75 mm – 14 mm | Better than 1% | 5.5 kg | Small-Section Round Cable |
| LM30 | 1.5 mm – 30 mm | Better than 1% | 3 kg | Hand Winders / Trade Counter Bench |
| LM75 | 6 mm – 75 mm | Better than 1% | 12 kg | SCW Winders / General Purpose |
| HDLM80 | 3 mm – 80 mm | Better than ½% | 28 kg | Heavy Round-Section Cable |
| HDLM100 | 6 mm – 100 mm | Better than ½% | 31 kg | PLW Winders / Heavy Payoffs |
| WRLM60 | 8 mm – 60 mm | Better than ½% | 38 kg | Covered / Uncovered Wire Rope |
Standard Equipment & Safety
- Knurled aluminium or steel measuring wheels.
- Standard counter measuring in meters and tenths from 0 to 9999.9m.
- Adjustable spring-loaded pressure guide rollers.
- Robust heavy duty cast frame housing.
Optional Extras Available
- Electronic digital counters.
- Single or double preset counters with automatic slowdown trigger.
- Rubber / polyurethane coated wheel for delicate jackets.
- Counters to measure in yards / feet.
- Quadrature encoder output for PLC connection.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
