Engineering Overview
Autoreel’s Cable Drum Jacks are a simple, efficient, and cost-effective method of enabling the payout of cable from large capacity drums.

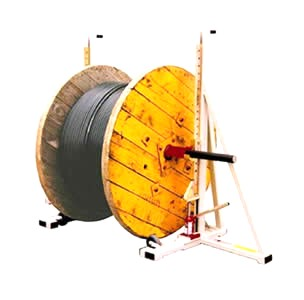

Cable Drum Jacks comprise a multi-position sliding carriage within a vertical guide mounted on a hydraulically operated lifting jack, all of which is supported by a stable triangular base frame.
The multi-position carriage allows for wide drum diameter adjustments while maintaining minimum jack extension for maximum stability.
Machinery in Action • Factory Demonstration
High-Tonnage Hydraulic Cable Drum Jacks & Floor Rollers
Hydraulic bottle jack unspooling stands and ground-level drum rollers for high-tonnage field payout up to 10,000 kg.
Factory Photo Gallery
CJ Series Cable Drum Jacks Technical Specifications
| Model | Max Drum Diameter | Max Drum Weight | Machine Depth | Machine Height | Machine Width | Weight per Pair |
|---|---|---|---|---|---|---|
| CJ3000 | 2400mm | 3000Kg | 720mm | 1450mm | 800mm | 161Kg |
| CJ6000 | 2900mm | 6000Kg | 830mm | 1680mm | 900mm | 205Kg |
| CJ10000 | 3500mm | 10000Kg | 950mm | 1970mm | 1050mm | 235Kg |
Standard Equipment & Safety
- Multi-position sliding carriage on vertical guide columns.
- Hydraulically operated bottle lifting jacks.

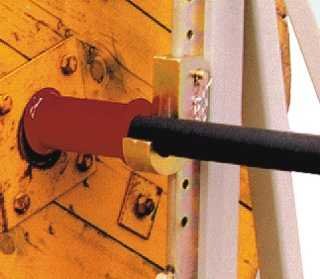

- High tensile alloy steel drum axle with locking collar clamps.
- Rear wheels for tilting and rolling around the working area.
- Supplied with Proof Load Test Certification.
Optional Extras Available
- Collapsible frames (CJ6000C) for easy vehicle transportation.
- Disc brake attachment to control payout and prevent drum overrun.

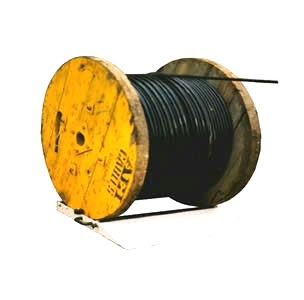

- DR Series ground-level cable drum rollers.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
