Engineering Overview
Autoreel’s HW100 Hand Winder provides a simple and cost-effective method of winding and accurately measuring cable onto coils or drums.

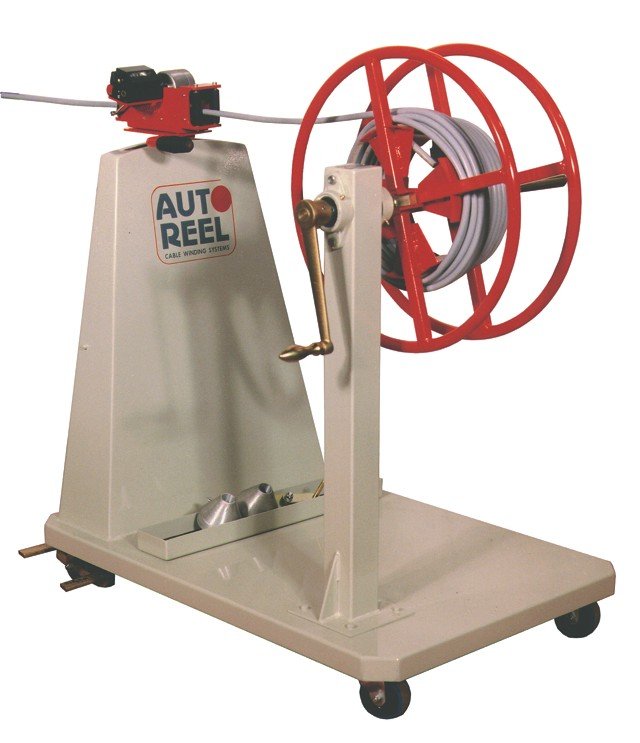

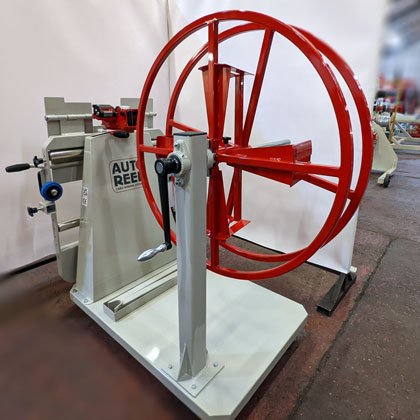

The standard unit is supplied complete with a coiling head reproducing a neat, bound coil (saving the additional cost of a drum), a metric linear measuring meter and a small drum mounting shaft.
A measuring meter is mounted on a traversing device enabling the operator to layer the cable neatly giving a more professional appearance to dispatch drums and coils.

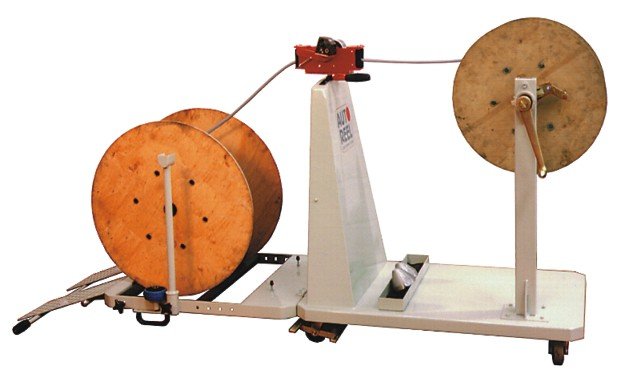

To facilitate the loading of stock drums the optional payout module is fitted to the rear of the machine, thus making the machine an all-in-one winder and payout.

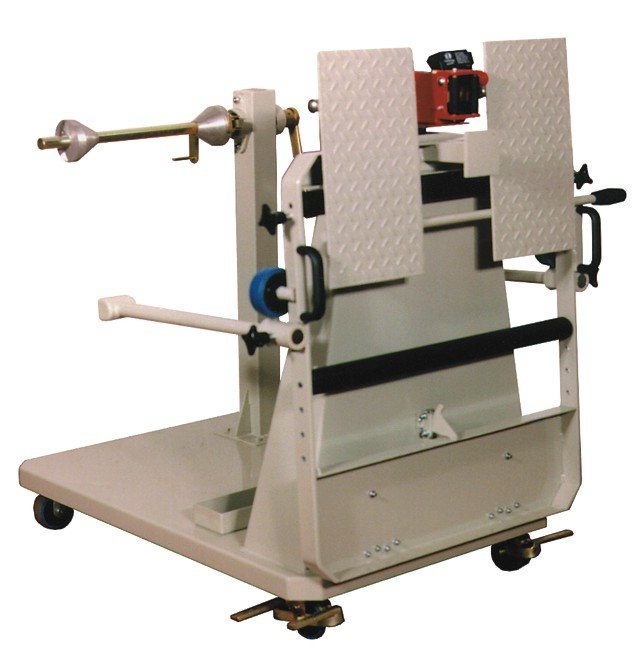

The PA100 payout module combines a drum roller frame and two removable drum stanchions with detachable drum loading axle. The stock drum is simply rolled up the entrance ramp onto the rollers. Stanchions and axle are used with damaged drums. The module is hinged to enable the unit to be folded for storage and transportation.
Machinery in Action • Factory Demonstration
Autoreel HW Series: Trade Counter Manual Winder & Coiler
Demonstrating manual reduction gearing, collapsible coiling head, and integrated metric linear measuring meter for trade counter operations.
Factory Photo Gallery
HW 100 Technical Specifications & Machine Dimensions
| Specification Item | Exact Dimension / Weight |
|---|---|
| Machine Height | 1200mm (1450mm with Coiling Head fitted) |
| Machine Width | 800mm (1080mm including winding handle) |
| Machine Length | 1200mm (2100mm with payout module in operation position) |
| Machine Weight | 130Kg |
| Coil Capacity | Supplied with split collapsible coiling head |
| Drum Shaft | Detachable drum mounting shaft included |
Standard Equipment & Safety
- Linear measuring meters (metric 0–9999.9m).
- Split coiling head for making neat bound coils.
- Drum mounting shaft with centering cones.
- Wheels and castors (two with foot brakes).
- Cable layering traversing device.
Optional Extras Available
- PA100 foldaway rear payout module with entrance ramp and rollers.
- Electronic LCD length display counter.
- Alternative coiling head core dimensions.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
