Engineering Overview

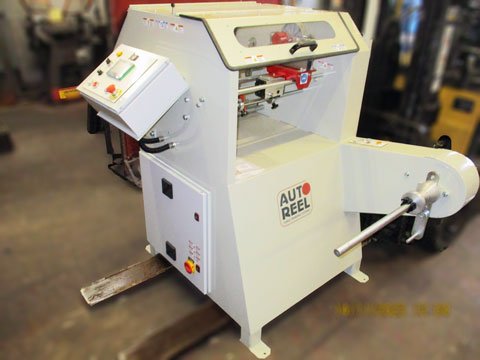

Autoreel’s comprehensive system for high-speed winding of small wires and cables onto domestic size cardboard and plywood reels. This unique modular system is specifically designed for use in medium output distribution and process line applications.
The basic system comprises a pintle loading winding head with a variable speed drive and a cable-layering device. Onto this we can add a number of modules which tailor the machine to your specific requirements. These include Automatic layering, integrated payoff device, Constant tension dancer arm, etc.
By applying Autoreel’s philosophy of effortless one-man operation to the HSR, easy drum loading has been combined with state-of-the-art technology to ensure high performance and reliability with reduced expenditure.
The HSR100 can be used on a process line or linked with a pay-off for rewinding applications. This example shows it being used with an Autoreel PLP2000 powered pay-off allowing the system to rewind from 2000kg drums.
Machinery in Action • Factory Demonstration
Autoreel HSR 100: High Speed Despatch Reeler (350 RPM)
Watch closed-loop automatic cable layering and rapid spooling onto domestic plywood and cardboard reels at up to 350 rpm.
Factory Photo Gallery
HSR Drum Capacity & Machine Dimensions
| Specification Item | Capacity / Dimension Value |
|---|---|
| Max Drum Diameter | 500 mm |
| Max Drum Width | 375 mm |
| Max Drum Weight | 500 Kg |
| Machine Depth | 1550 mm |
| Machine Height | 1450 mm |
| Machine Width | 1200 mm |
Standard Equipment & Safety
- Powered by variable speed motor.
- Hand operated cable-layering device.
- Drum mounted adapters for a wide range of drum sizes.
- Mounted on platform base.
Optional Extras Available
- Range of Measuring meters.
- Integrated payoff attachment with or without disk brake.
- Air operated disk brake.
- Automatic cable layering.
- Automatic cable measurement.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
