Engineering Overview

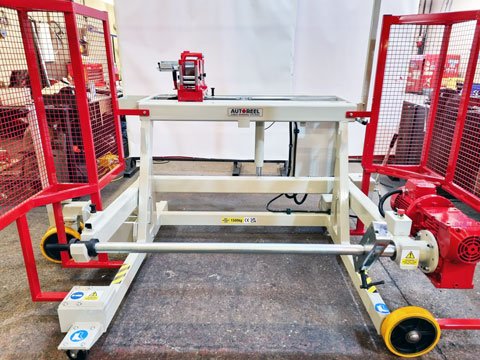

THE VIPER: The Viper is an electrically powered coiling machine suitable for the measuring and despatch of cables (from a payout machine, jacks or racking) up to 35mm in diameter. As standard the machine is fitted with manual hydraulic jacking to raise and lower the drum, but motorised hydraulic lift can be supplied if required. Cable is fed from the payout medium through a calibrated measuring head to the despatch side of the machine, paid onto a drum or simple coiling head. The unit is very simple in operation and highly mobile around the warehouse with a positive braking system when in operation.

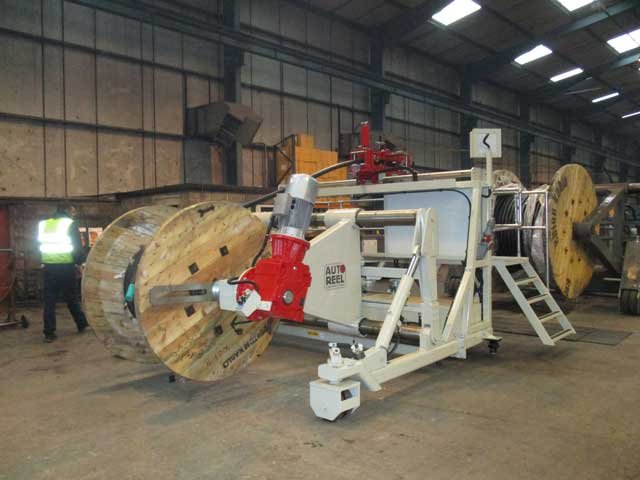

THE BOA: The Boa provides the ultimate in fast and efficient cable reeling for heavy duty drums and cable. Independent lateral movement of the pintle arms enables the drum bores to be located one side at a time, and this mechanism does not require the drum to be central in the machine prior to clamping. Dual operator stations allow operation from either side of the machine, and variable speed motors provide smooth, controlled reeling.
Machinery in Action • Factory Demonstration
The BOA & Viper: Self-Propelled Mobile Warehouse Reeler
Demonstrating independent lateral pintle movement and powered warehouse steering for rapid cut-to-length cable orders.
Factory Photo Gallery
Reelotech Range Model Specifications
| Model | Cable / Drum Capacity | Lift Mechanism | Pintle / Clamping Action | Operator Controls |
|---|---|---|---|---|

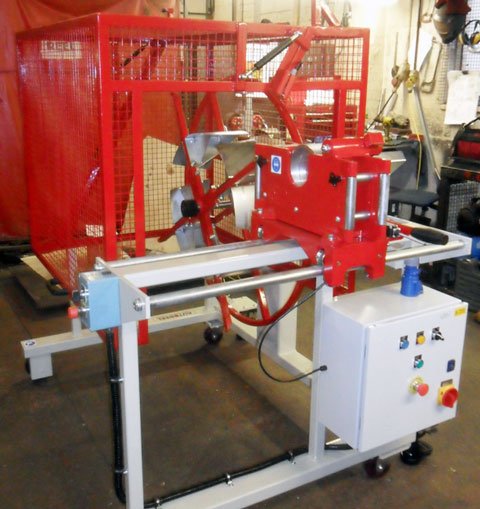

| The Adder | Compact drums & flexible cords | Manual hydraulic lift | Standard pintle clamps | Single side console |
| The Viper | Cables up to 35mm diameter; medium drums & tied coils | Manual or Motorised hydraulic lift | Quick-clamp shaft or pintles | Calibrated measuring head + foot brake |
| The Boa | Heavy duty industrial drums & power cables | Powered motorised hydraulic lift | Independent lateral pintle arms (one side at a time) | Dual operator stations (both sides of machine) |
Standard Equipment & Safety
- Independent lateral pintle movement (Boa) locating drum bores without pre-centering.
- Calibrated measuring head (Viper) for cables up to 35mm diameter.
- Variable speed electric drive motor with smooth acceleration.
- Positive ground locking braking system when stationary in operation.
- Dual control stations for complete 360-degree operator visibility.
Optional Extras Available
- Motorised hydraulic lift powerpack for The Viper.
- Interchangeable collapsible coiling head for tied coils.
- Integrated optical laser travel scanner.
Bespoke Modifications & Custom Drum Requirements
Over 60% of all Autoreel machinery built at our Nottingham plant includes customised modifications such as extended drum widths, automatic closed-loop cable layering, hazardous area ATEX enclosures, or specialised coiling attachments. Contact our design desk on +44 (0)115 939 0200 or email autoreel@autoreel.co.uk.
